Riveting tool PNP 90 UN 2.0 Complete kit

Operating principles

The tool kit comprises the pneumo-hydraulic pressure intensifier PNP 90 and a hydraulic actuator with hose package. The kit is completed by an NB 40 rivet clamp and a fully equipped RIVKIT UN 2.0 riveting tool kit.

The hydraulic pump is a pneumatically driven pressure intensifier with a pressure ratio of 1:100. This means that hydraulic output pressure of 600 bars is generated with input pressure of 6 bars. When the equipment's preset final pressure is reached, the pump stops automatically and keeps the pressure constant. The hydraulic pump has a pneumatically controlled pressure relief valve.

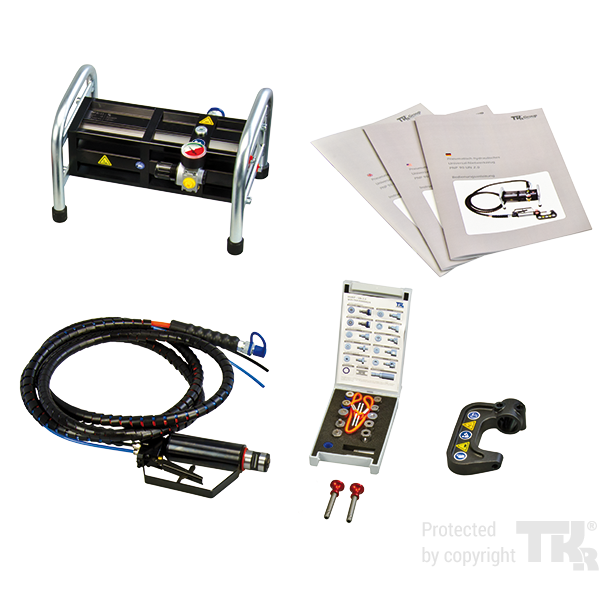

Set
contains:

• Pump PNP 90
• NB 40 rivet clamp
• Hydraulic actuator HP 35 UN
• 2 Ball lock pins
• Rivet insert repair kit
• Instruction manual, EN
